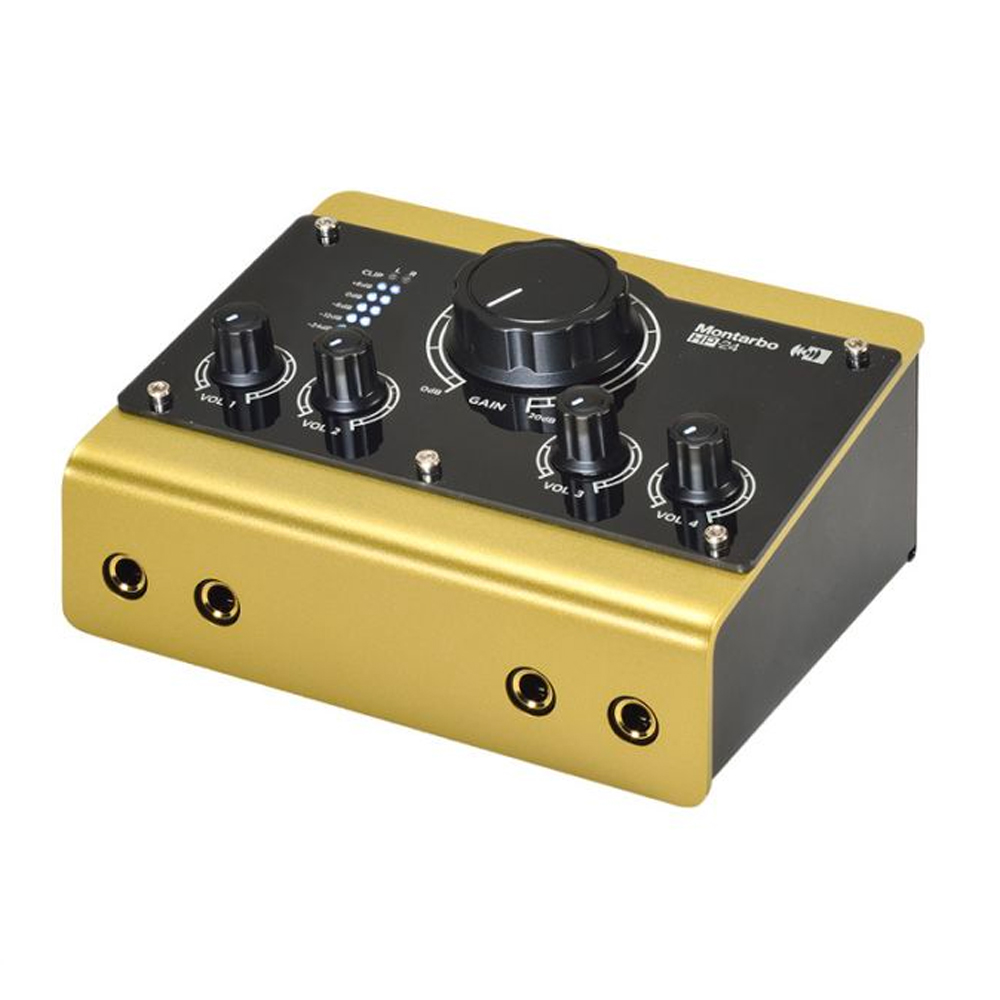

Montarbo HP24 4 Channel Headphone Amplifier

Item Code: HP24 | Brand: Montarbo

True False
OMR 57.000

In Stock! Available for immediate delivery!

Share this with your friends:

The compact, versatile headphone amplifier able to get the most from any professional headphone. Practically speaking, HP 24 not only allows up to 4 users to listen at the same time but also customizes the sound experience to suit the needs of sound engineers, musicians, and performers, while maintaining the optimal audio performance.

HP 24 perfectly combines the ability to apply high gain with very low distortion levels. The amplifier features L/R balanced inputs. The central knob controls the amplification level of the audio signal, while the LED meter displays the stereo audio level, visually reporting possible saturation/clipping.

Each of the 4 channels has an independent level control. A dedicated button allows switching the signal from stereo to mono and vice versa, when necessary. In addition to this, auxiliary input and output also allow multiple HP-24 modules to be connected together, increasing the total number of available channels when needed. The ground terminal eliminates any buzz due to connection between different devices.

The amplifier is supplied with an external power supply unit with interchangeable plugs (EU/UK/US).

Frequency Response 10 Hz - 35 kHz
Noise Ratio 101.7 dB
Maximum input level 5.5 dB (32Ω) / 12.2 dB (300Ω) / 12.3 dB (600Ω)
THD+N Ratio 0.006% @1kHz 32Ω / 0.0008 % @1kHz 300Ω/600Ω
Maximum output power 2 x 227mW@32Ω / 2 x 140mW@300Ω / 2 x 138mW@600Ω
Stereo isolation 62.3 dB (32Ω) / 77.1 dB (300Ω) / 86.4 dB (600Ω)
Input Impendance 50 kΩ
Input 2 x 6.35mm balanced 1 x 6.35mm stereo AUX
Output 4 x 6.35mm stereo, 1 x 6.35mm stereo AUX
Controls Gain (0 - 20 dB) ; STEREO-MONO selector, 4xVolume Knob
Power SMPS with interchangeable plugs INPUT: 100-240V~ 50/60Hz 0.75A OUTPUT: 12V DC / 2A 24W
